PROTECH®
X-CAL™ AP™ – TYPE IV ICW
X-CAL™ AP™ – TYPE IV ICW
Couldn't load pickup availability

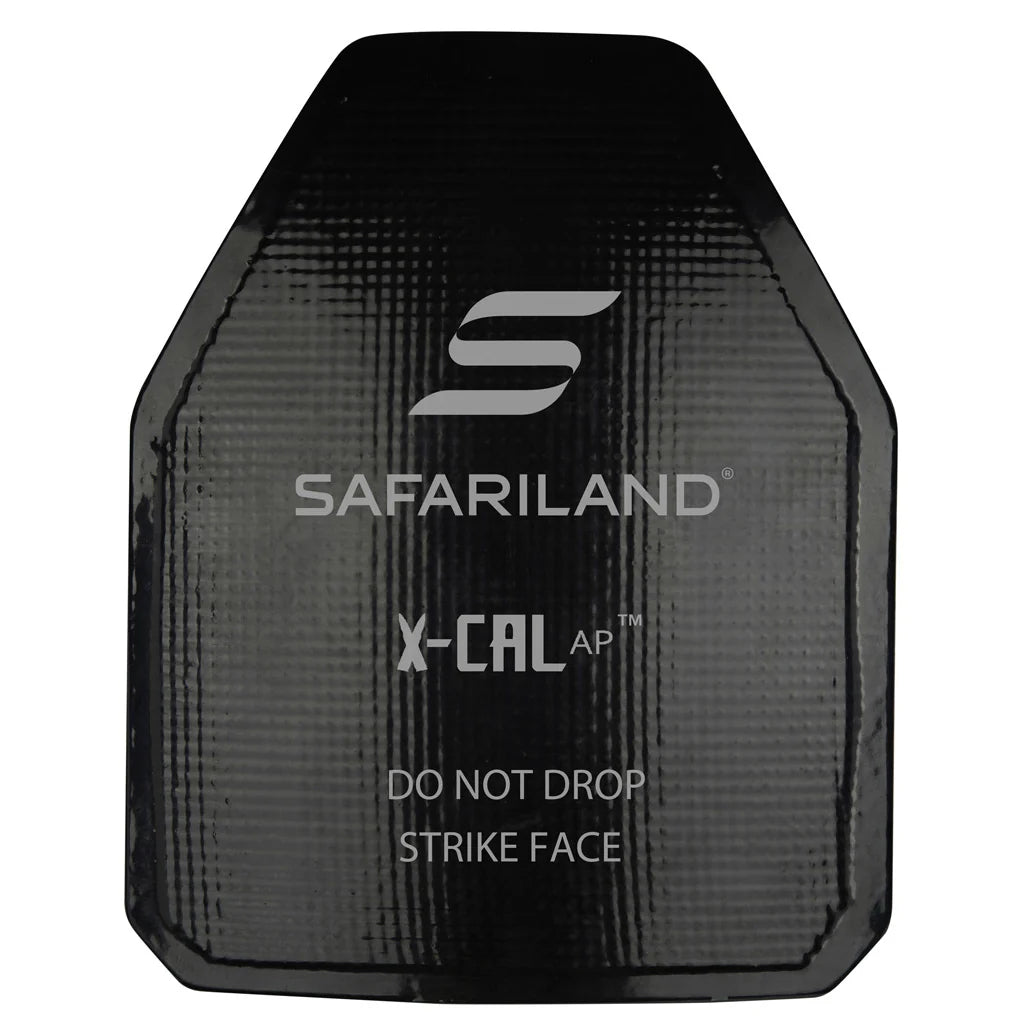

The X-Cal™ AP™ ICW is composed of a lightweight ceramic and glass composite, covered with an advanced Polyurea coating. This Level IV plate is designed for cost-effective ballistic protection while maintaining a low profile. Weighing approximately 5.2 lbs. in the 10” x 12” Shooters Cut, the X-Cal AP is 0.49” thin with a fitting multi-curvature.
The X-Cal AP ICW is Independently tested to stop the 7.62 x 63 mm, 166 gr. AP (30-06) (M2A1) round when used in conjunction with the following Safariland Type IIIA packages:
Summit® SM02 Type IIIA – BA-3A00S-SM02
Xtreme® XT03 Type IIIA – BA-3A00S-XT03
SX™ SX02 Type IIIA – BA-3A00S-SX02
SX™ SX03 Type IIIA – BA-3A00S-SX03
Matrix® MR02 Type IIIA - BA-3A00S-MR02
FEATURES
Specifications
- Independently tested
- Sizes & weights (approx.):
- 10”x12” Shooters Cut – 5.20 lbs. (2.36 kg)
- 6"x6" Rectangle Cut - 1.80 lbs. (0.82kg)
- Multi Curve
- Single Curve for the 6"x6" size
- 0.49” (1.2 cm) thinness
- Ceramic and glass composite with Polyurea coating
- 5 year limited warranty
*All numeric figures are approximates
| Soft Armor Packages | Special Threats |
|
Summit® SM02 Type IIIA - BA-3A00S-SM02 |
7.62 X 63mm, 166 gr. AP (30-06) (M2AP) Test Velocity 2880 +/-30 ft/s |
